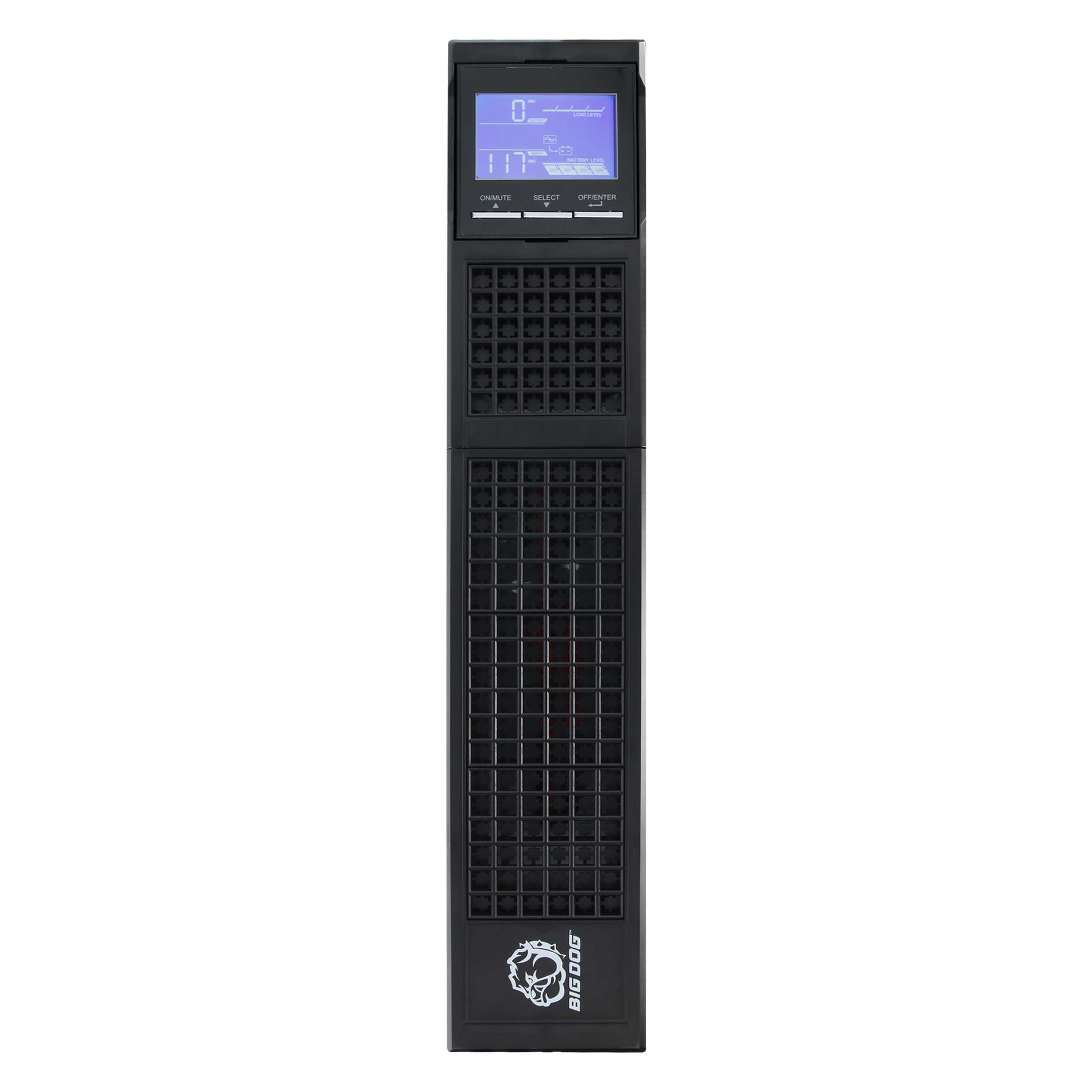

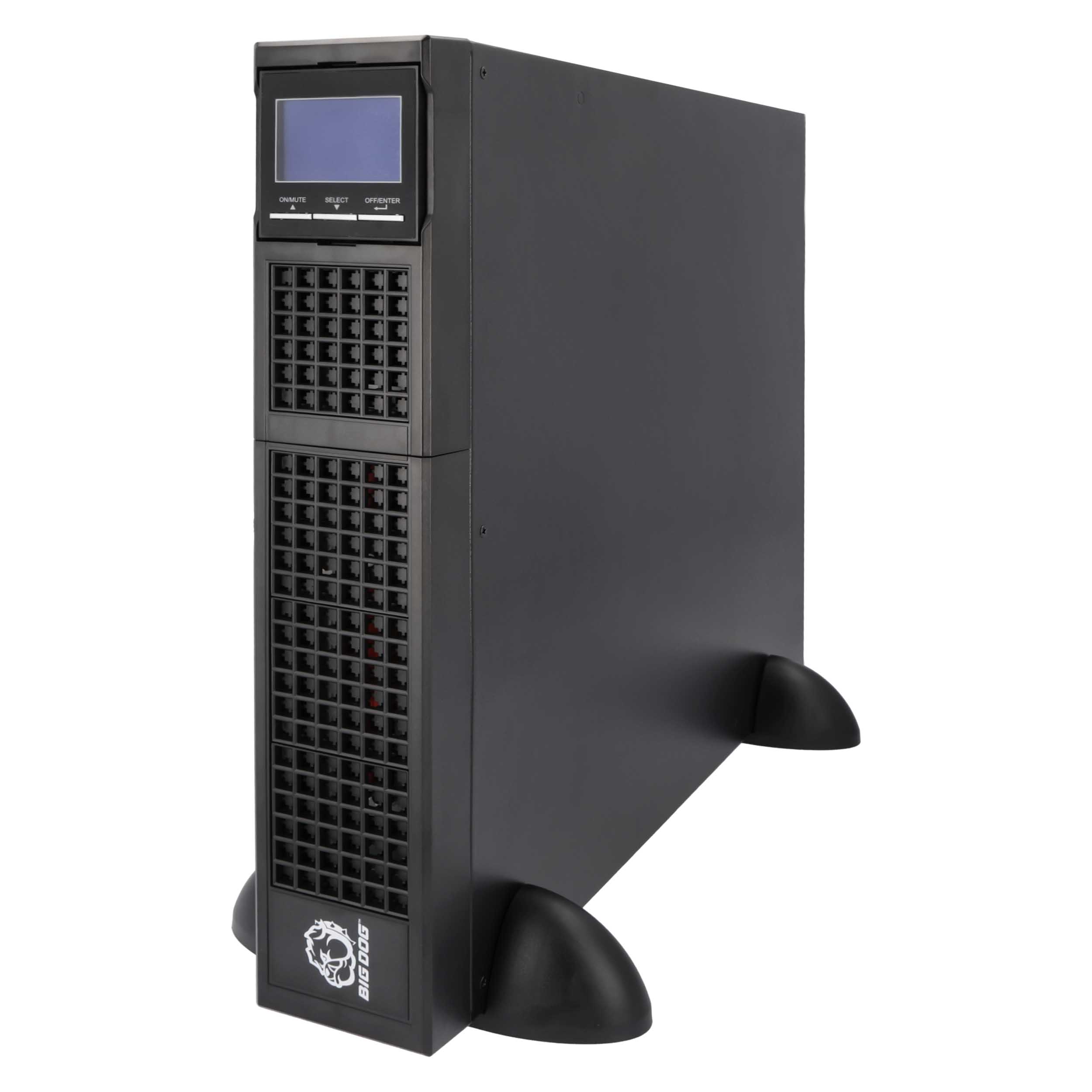

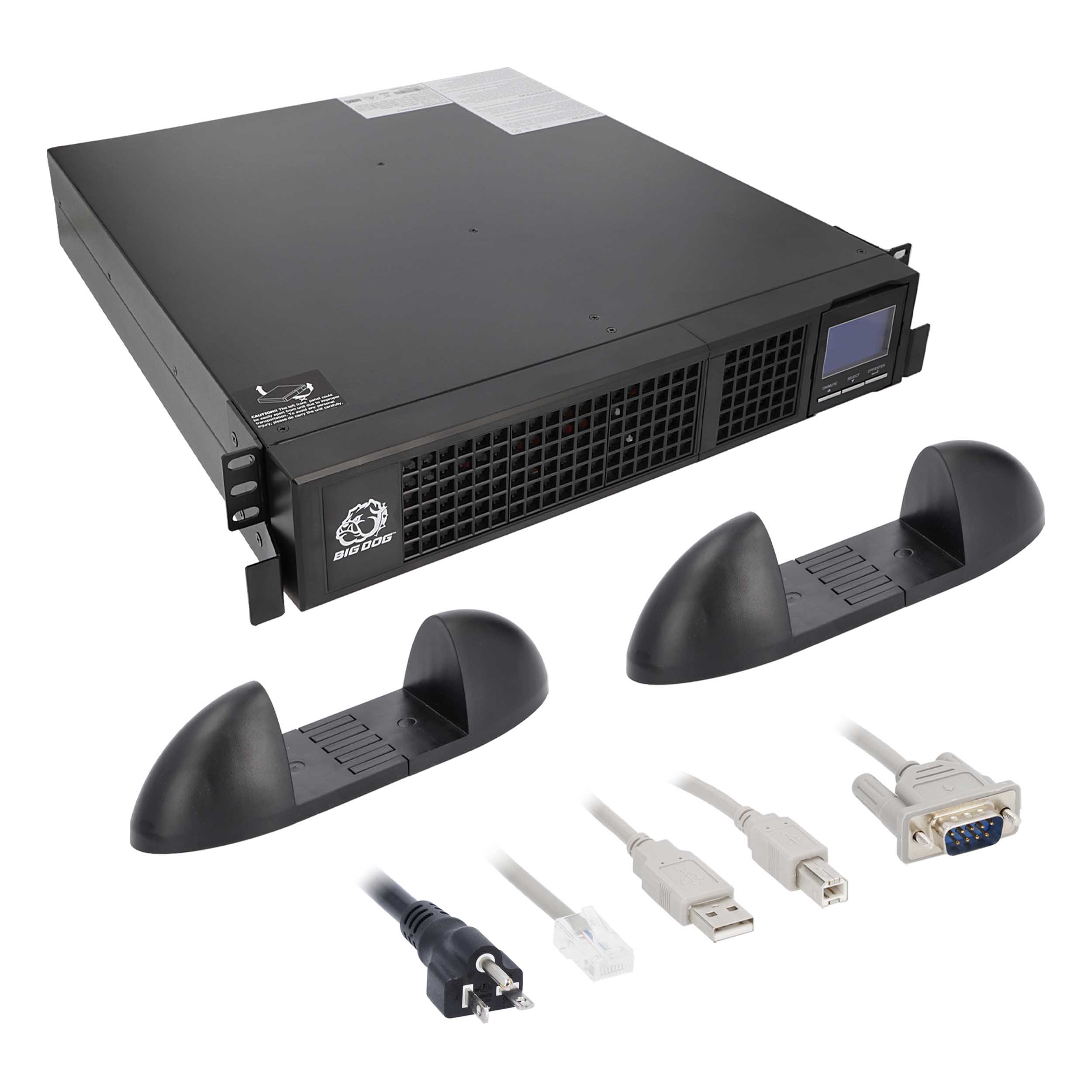

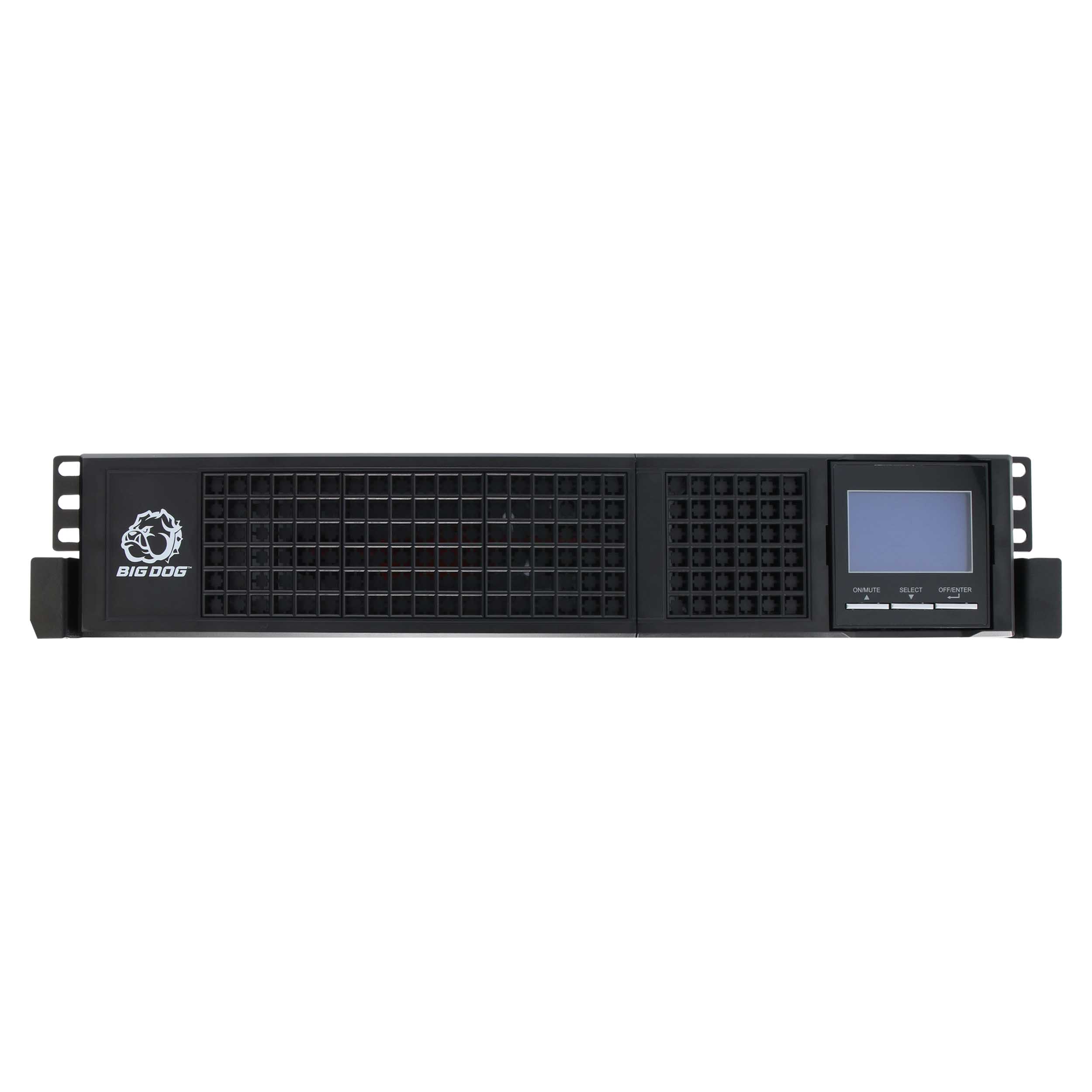

2000VA ONLINE UPS, 8-OUTLETS, PURE SINE WAVE

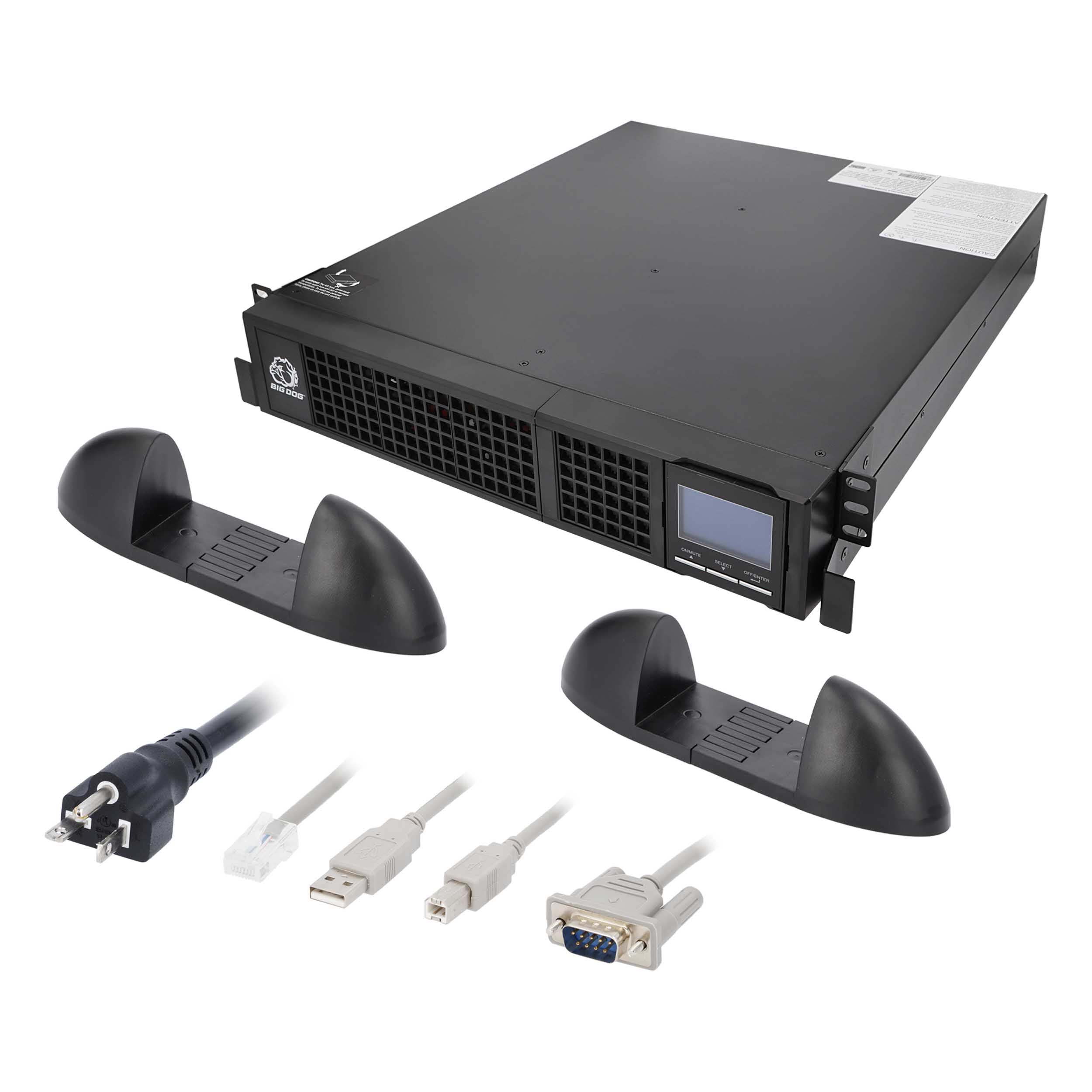

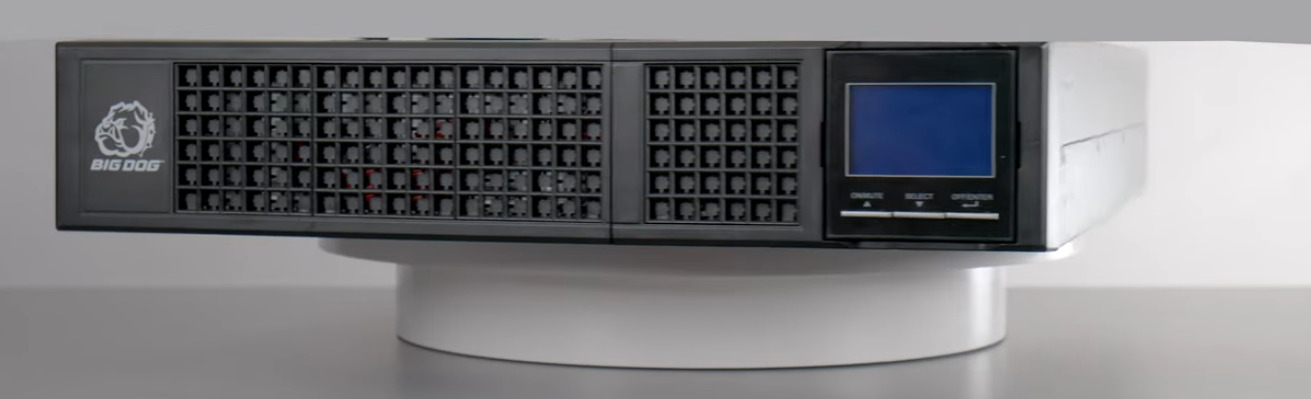

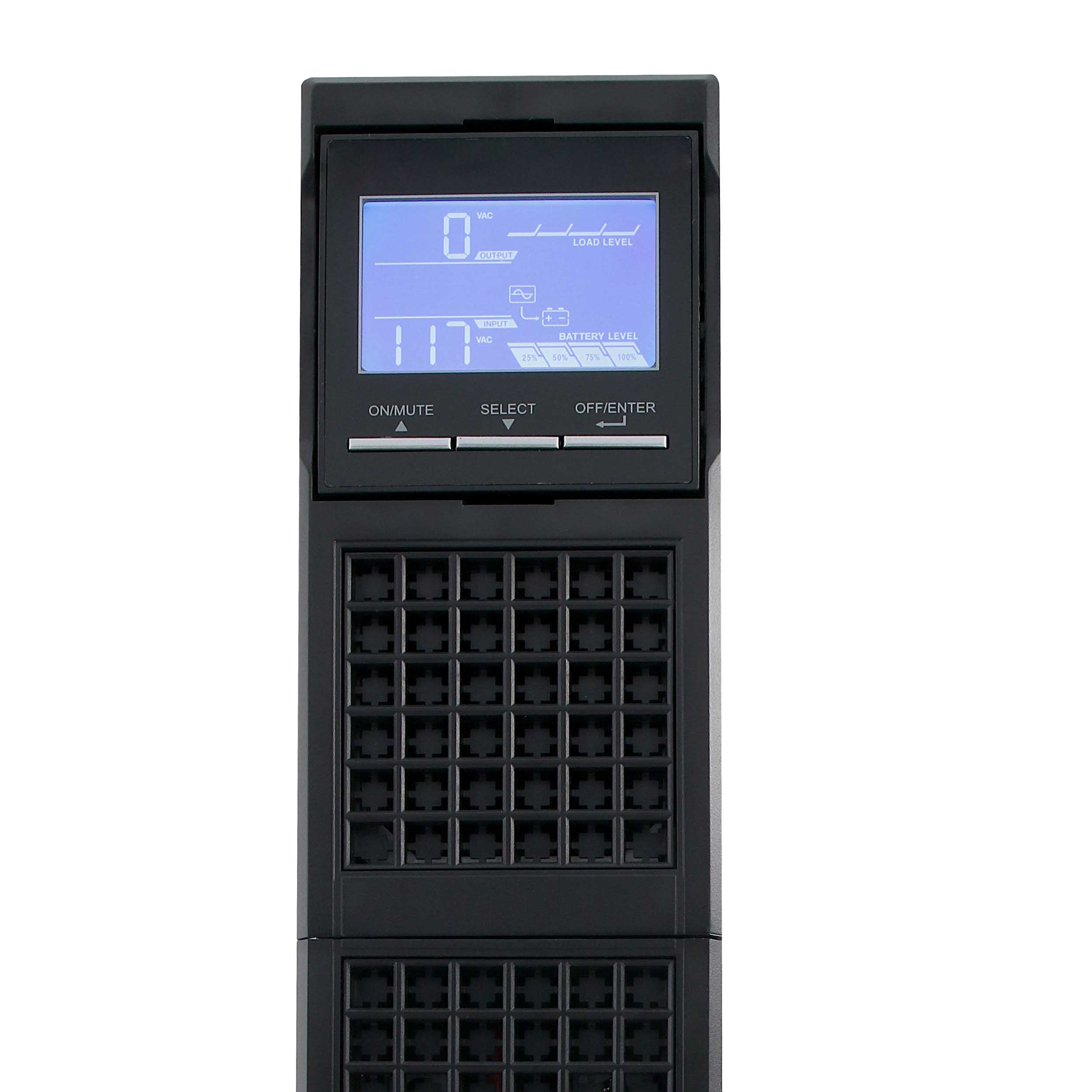

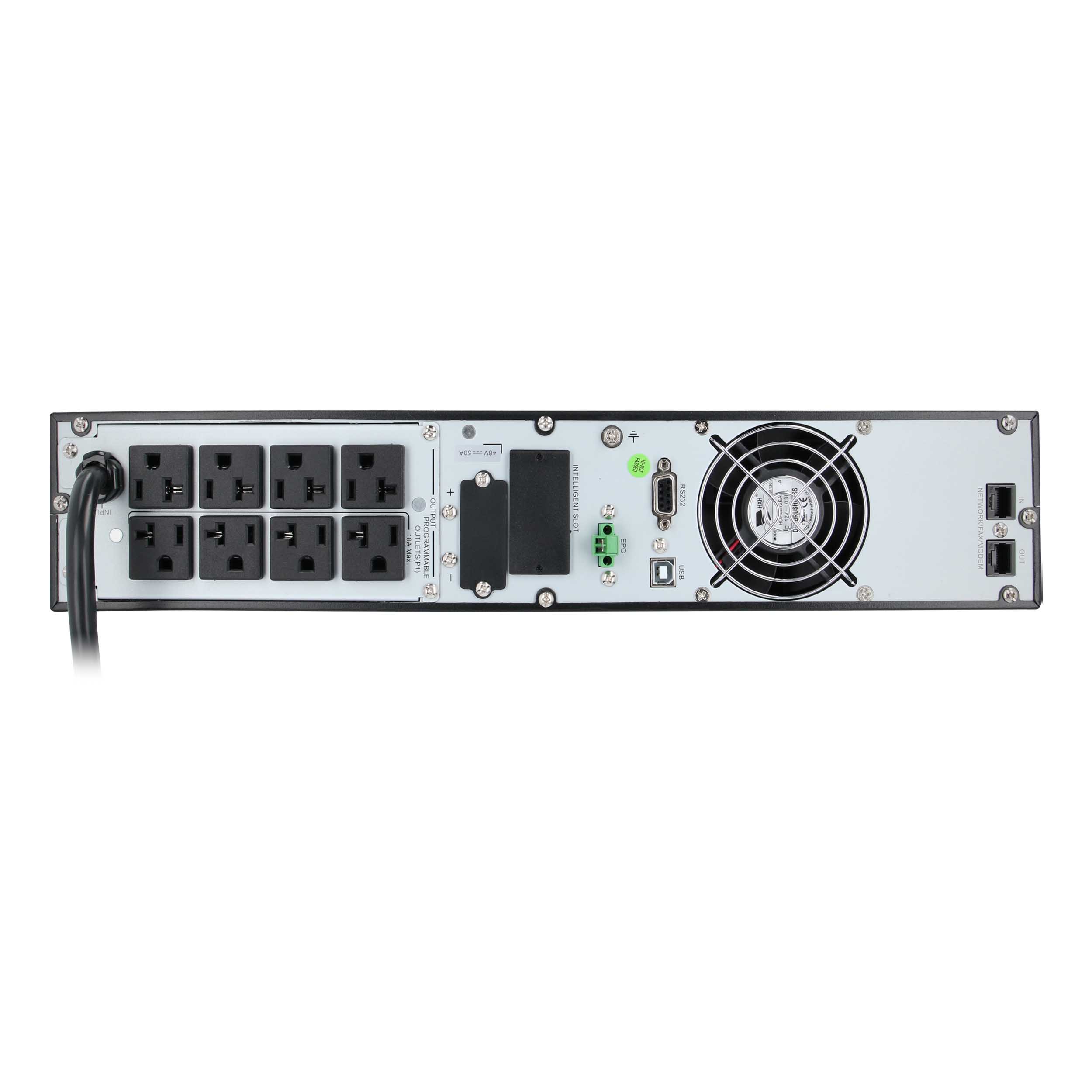

The PR-R8U2K is the first UPS that integrates with the Big Dog Power: Power Distribution system (PR-R13PI and PR-V7PI) to give a seamless experience when you have equipment that needs to stay running for as long as possible in the event of a power outage. This is a 2U rack mounted 2000VA Online UPS with 8 Total outlets and 4 battery powered outlets. Due to the Online nature of this PDU, there is no relay to switch power from the AC mains to the battery power which means no period where there may not be power, saving those sensitive electronics from short term power loss errors. Pure Sinewave

FEATURES:

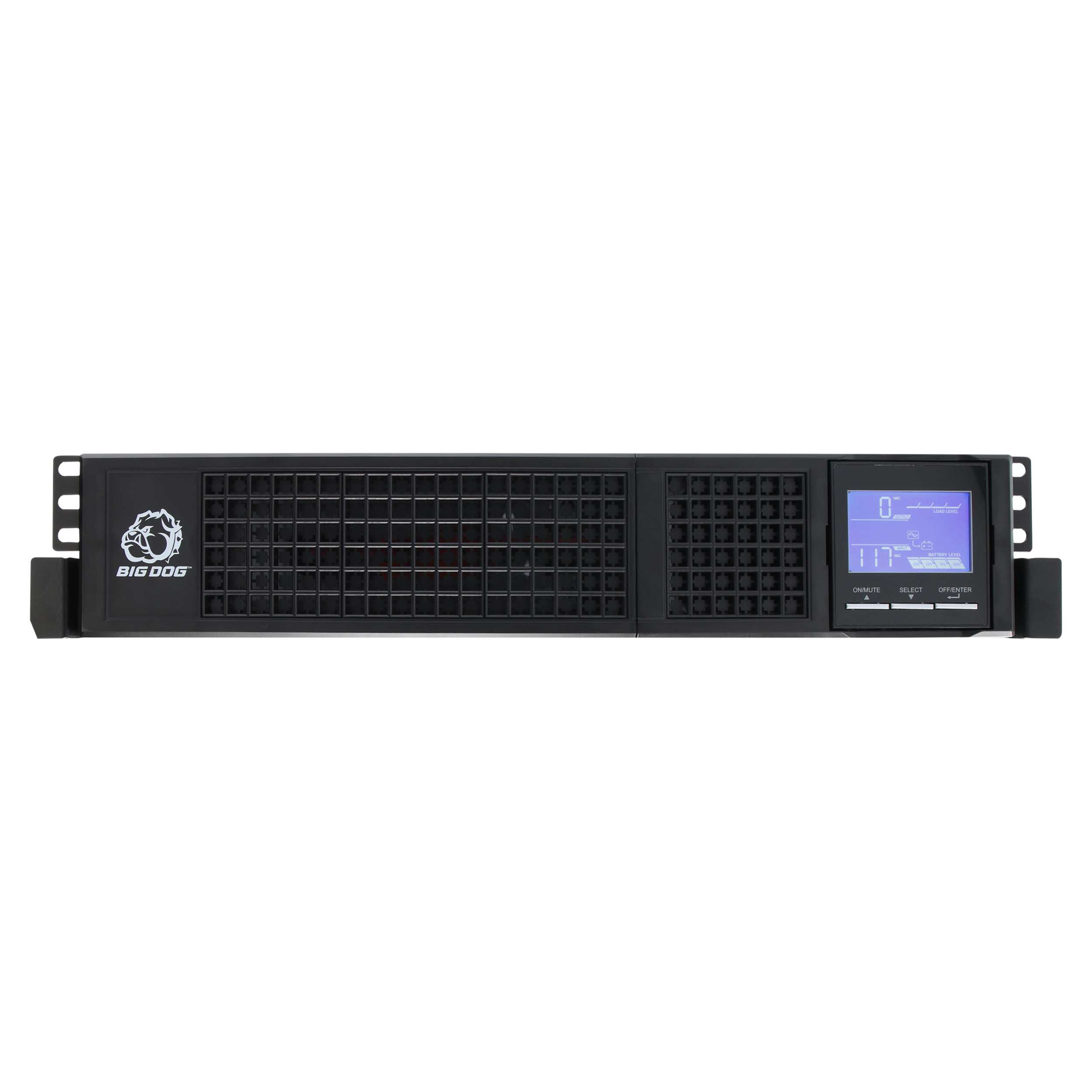

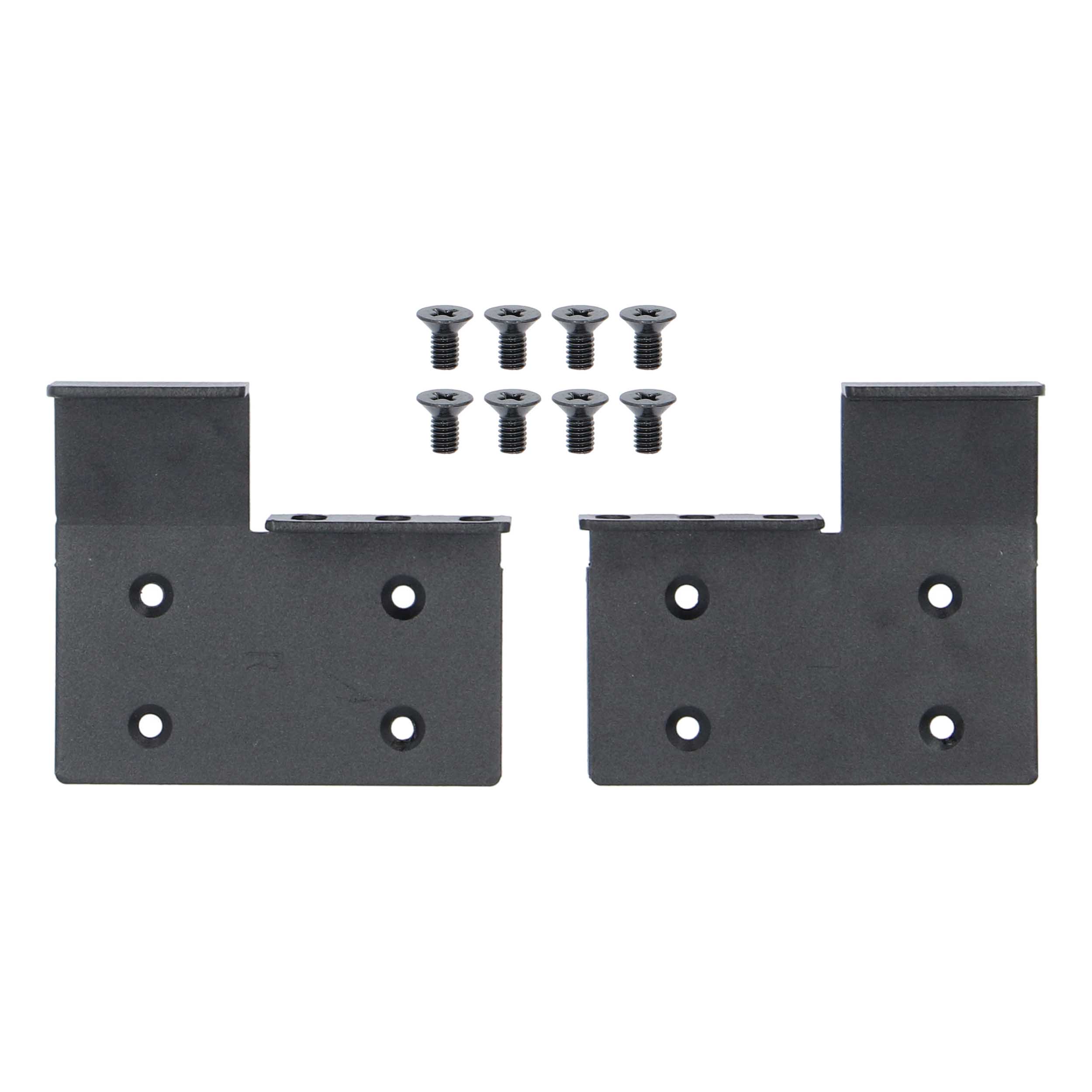

• 2RU rack mountable
• Uninterruptable Power Supply
• Online UPS Power
• 2000VA/2000W Capacity

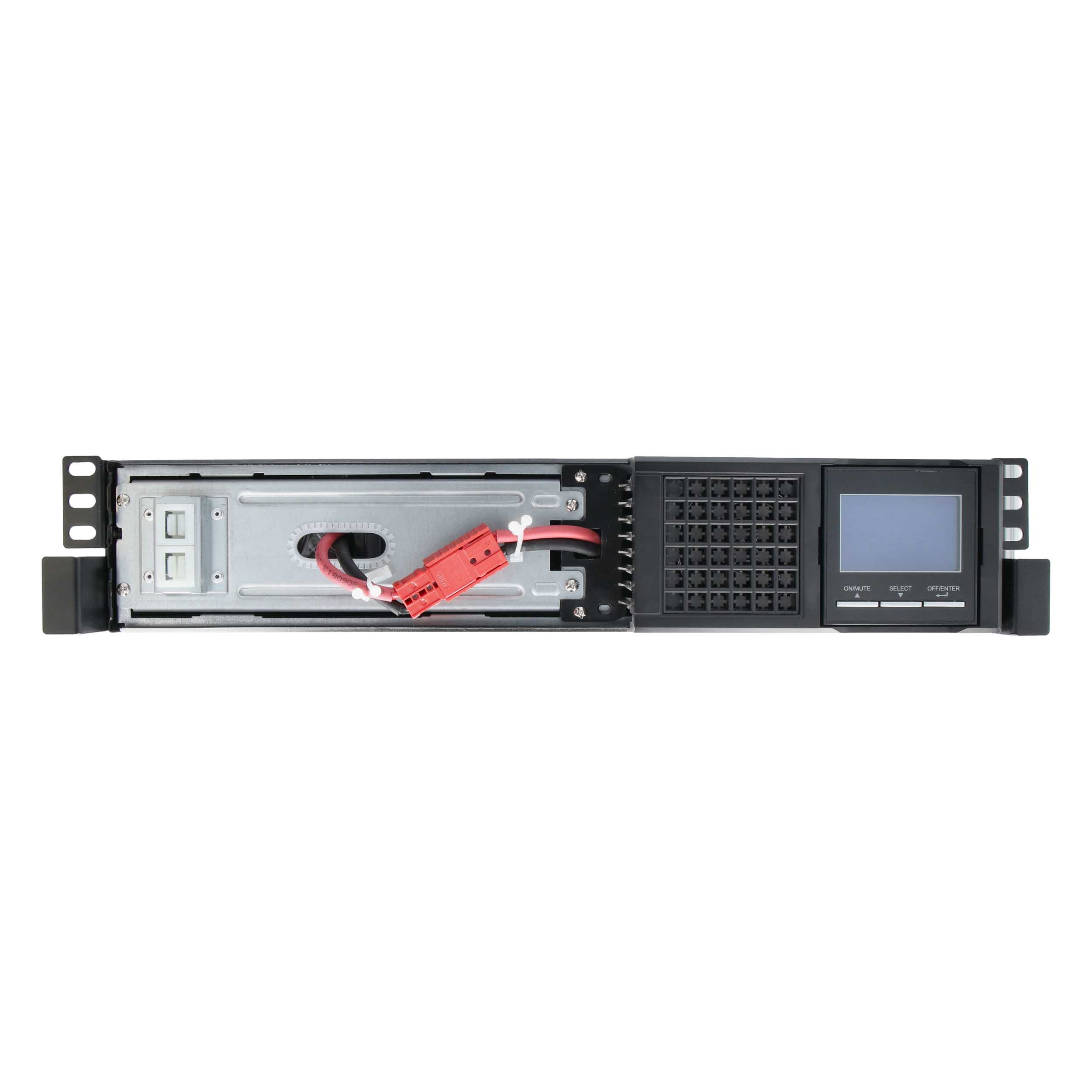

• Four 12-volt 9 Amp Hour batteries
• Input Rating: 110-127VAC @ 50/G0Hz 16A
• 1850W Output Rating at 120VAC input
• Load Shedding when paired with Big Dog PDU (PR-R13PI, PR-V7PI)
• Configurable Voltage and Frequency output

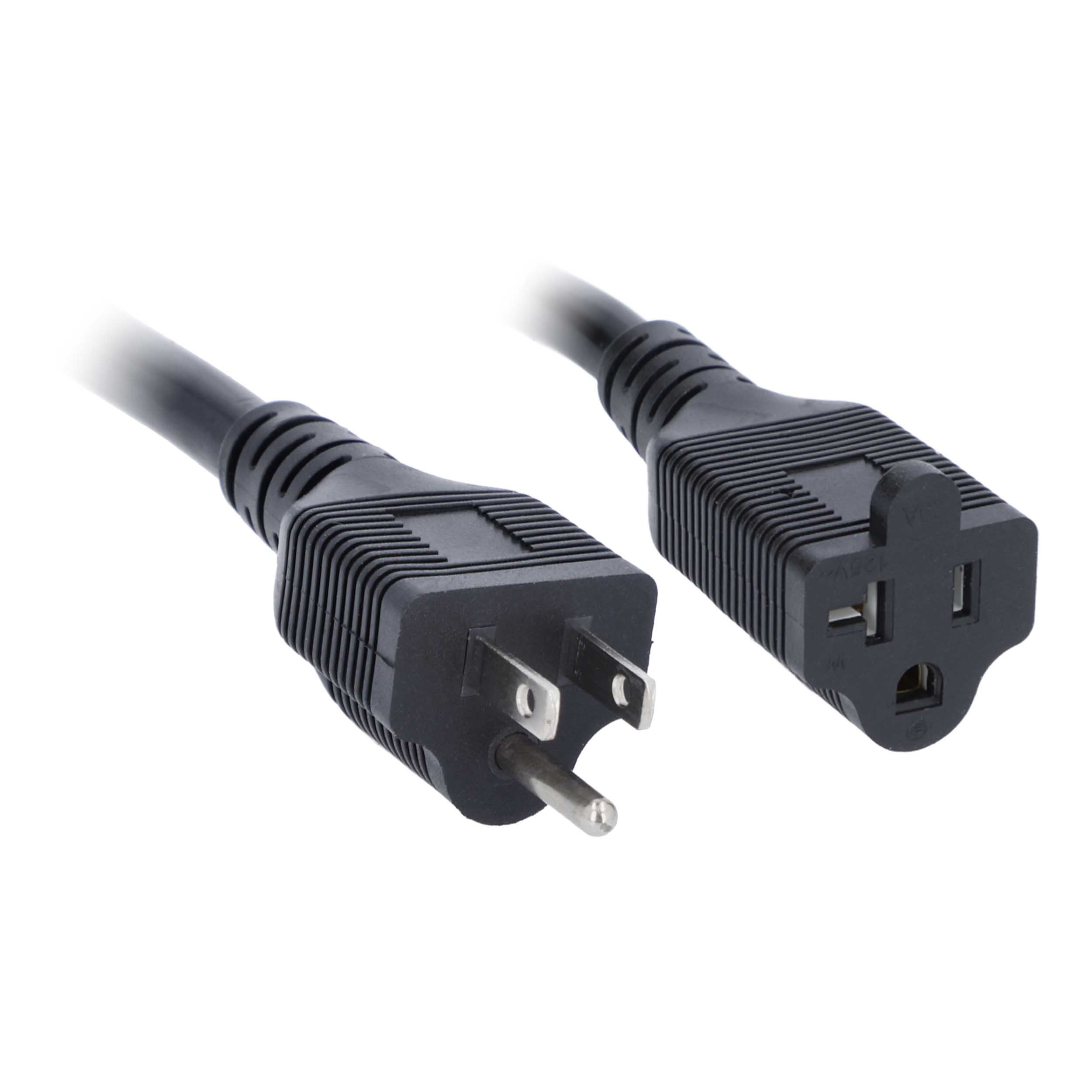

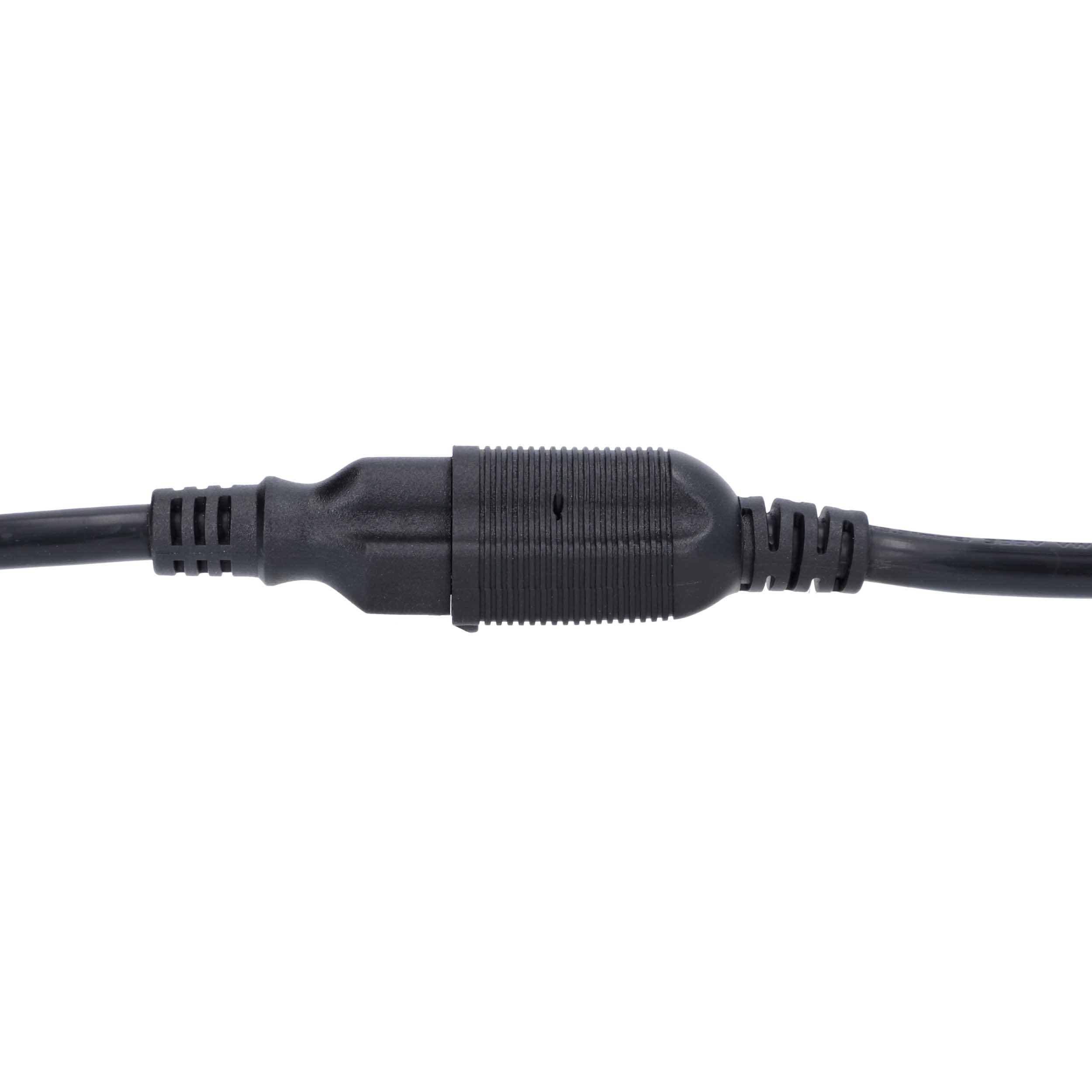

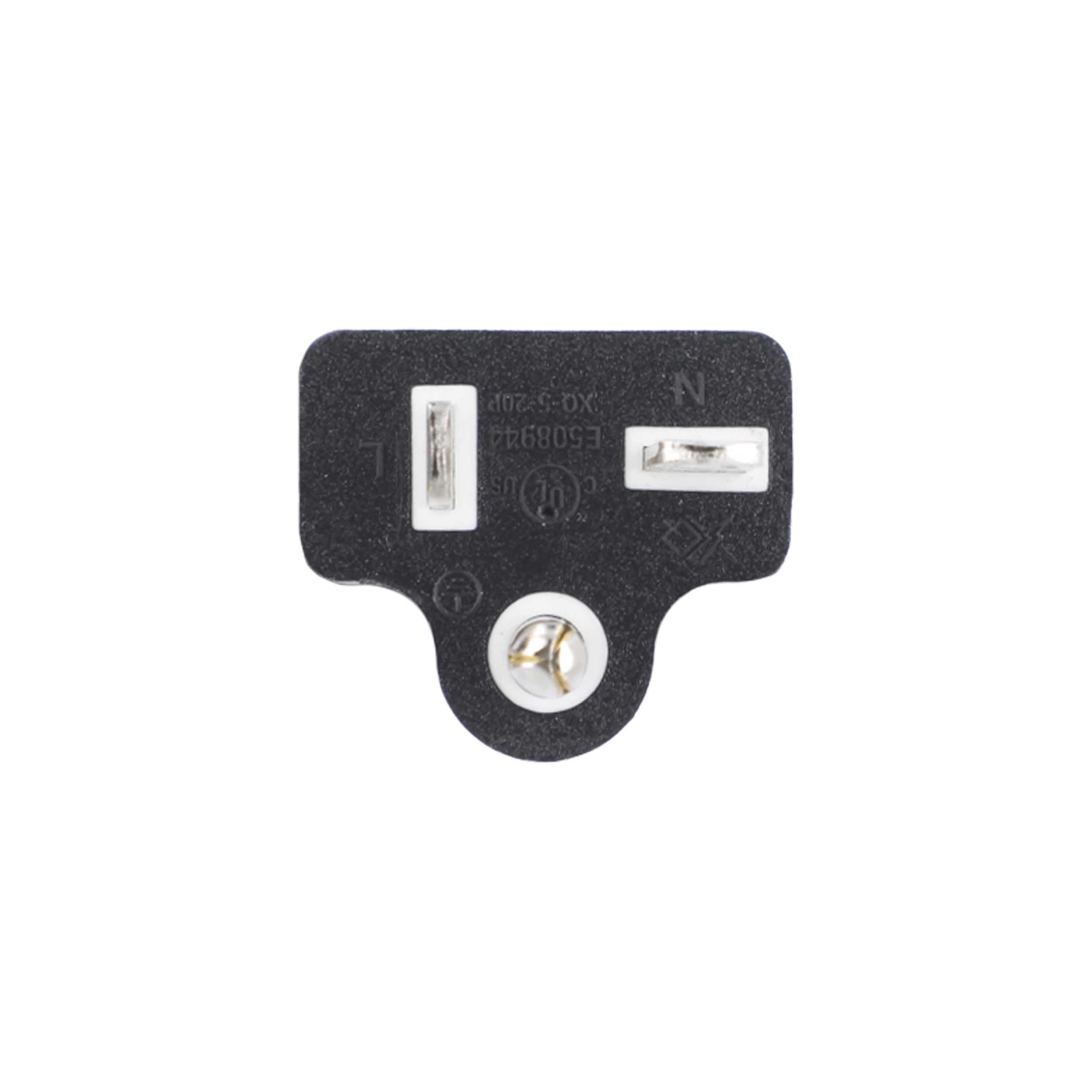

• Optional NEMA 5-20R To NEMA 5-15P Adapter For 20Amp To 15Amp Plug cable available: PR-PC1520

SPECIFICATIONS:

CAPACITY: 2000VA/2000W

INPUT

VOLTAGE RANGE:

Low Line Transfer - 80VAC/70VAC/60VAC/55VAC ±5 % ( based on load percentage 100% -80 % / 80 % -70 % / 70 -60 % / 60 % -0)

Low Line Comeback - 87VAC/77VAC/67VAC/62VAC ±5 %

High Line Transfer 150 VAC ±5 %

High Line Comeback 145 VAC ±5 %

FREQUENCY RANGE: 40Hz - 70 Hz

PHASE: Single Phase with Ground

POWER FACTOR: ≥0.99 @ full load

THDi ≤5% @ 205-245 VAC or 100-130V AC

THDU:< 1.6% @ input and full linear load condition

OUTPUT

OUTPUT VOLTAGE: 100/110/115/120/127 VAC

AC VOLTAGE REGULATION:  ±1% (Batt. Mode)

FREQUENCY RANGE (SYNCHRONIZED RANGE): 47 - 53 Hz or 57 - 63 Hz

FREQUENCY RANGE: 60Hz  ±0.1 Hz (Batt. Mode)

CURRENT CREST RATIO: 3:1

HARMONIC DISTORTION: ≤2 % THD (Linear Load) ; 4 % THD (Non-linear Load)

Transfer Time

AC Mode to Battery Mode; Zero

Inverter to Bypass < 4 ms

WAVEFORM (BATT. MODE): Pure Sinewave

EFFICIENCY

AC MODE:  ≥91% @  full charged battery;

ECO MODE:  ≥96% @  full charged battery

BATTERY MODE:  ≥90%

BATTERY

BATTERY TYPE: 12V/9AH

NUMBERS: 4

RECHARGE TIME: 3 hours recover to 95% capacity for internal battery@ 2A charging current

CHARGING CURRENT: 100/110/115/120 /127 VAC models: default 2A, max. 8A adjustable

CHARGING VOLTAGE: 54.7 VDC  ±1%

PHYSICAL

DIMENSION, D X W X H (MM): 510 x 438 x 88

NET WEIGHT (KGS):

With battery 19.5

Without battery 9.4

ENVIORNMENT

OPERATION HUMIDITY: 20-95 % RH @ 0-40°( (non-condensing)

NOISE LEVEL: Less than 50dBA @ 1 Meter (With fan speed control)
